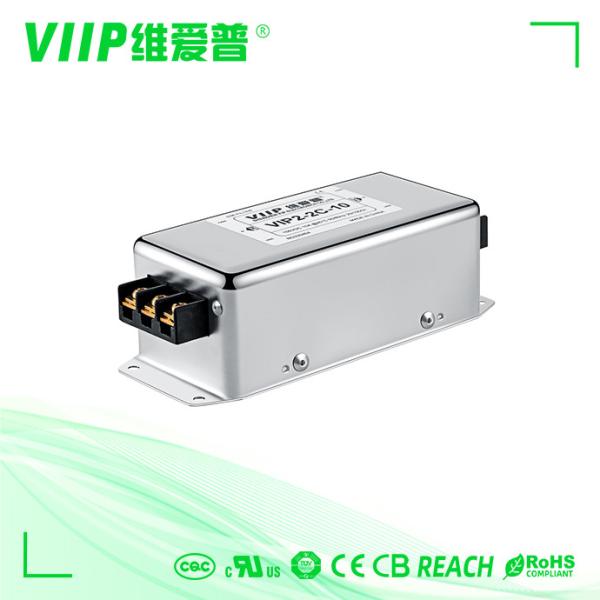

Laser Equipment 380V 440V 3 Phase EMI Filter With Block Terminal

Name: Laser Equipment 380V 440V 3 Phase EMI Filter With Block Terminal
Brand: VIIP WeiAiPu
Price: 1 USD

Brand Name : VIIP WeiAiPu

Model Number : VIP3-32B-50

Certification : CE TUV UL CQC

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Transfer function : general purpose

Rated voltage : 110/250VAC

Rated current : 50A

Application : laser equipment

Case : Metal

Product name : Common mode EMI/RFI filter

Delivery Time : 5-10 Days for samples

Input Impedance : 500VDC/100MOHM MIN

Frequency Range : 150 kHz to 30 GHz

Storage Temperature : -40℃~+85℃

Item : EMI filter

Operating Frequency : 50/60HZ

Nominal Center Frequency : 50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions : Varies depending on model

Port : Shenzhen

Termination Style : Solder Pins

Rated Current : Different

Weight : 290g-1000g

Insulation Resistance : ≥100MΩ

Rohs Compliant : Yes

Humidity : ≤95%RH

Contact Now

3 Phase Emi Filter 3 Wire For laser equipment ,automation equipment

VIP3-32B-50(B032S0425).pdf

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item	3 phase emi Filter
Model	VIP3-32B-50
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	1pcs
Applications	Laser equipment
leading time	5~15 weekdays

More details:

Laser Equipment 380V 440V 3 Phase EMI Filter With Block Terminal

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
