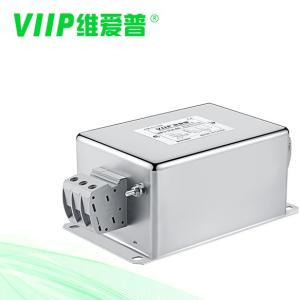

380V 440V 3 Phase EMI Filter With Block Terminal for Information protection
Description:
suitable for three phase three line power supply
compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective
Specification
| Item | 3 phase emi Filter |
| Model | VIP3-32B-150 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 50A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 1pcs |
| Applications | Laser equipment |
| leading time | 5~15 weekdays |
More details:
Rated current: 0.5-2000A
Optional medical versions(H type)
Solder lug, stud or terminal block connection(over 250A it's copper bar)
Custom specific versions on request
Suitable for three-phase three-line power supply
VIP3-32B series are two-stage common mode high performance three phase three-line filters
VIP3-32C series are two-stage filters comprising one common mode and one differential mode with enhanced filtering effect of the differential mode interference
Excellent common and differential mode filtering effect for interferance from 10KHz to 30MHz
520VAC or 690VAC high voltage versions optional
Applications:
Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
About Service
Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
